ELIMINATE THE GUESSWORK. This reversible mount can be installed on BOTH the Driver or Passenger side. Whether you have a Standard or Low seat base, or run Factory or Aftermarket swivels, this mount is engineered to fit your setup.
This sturdy, no-drill Lagun table mount fits 2007–2026 Mercedes Sprinter vans (NCV3 & VS30).It installs in minutes using existing factory holes in the seat base and the B-pillar D-ring bolt.
It is precision-machined from two pieces of 0.25" raw 5052 aluminum. When your Lagun Mounting Plate (not included) is bolted on, it ties the two pieces together to form a rigid, secure assembly that locks firmly between the seat base and the B-Pillar.
Finish Note: The mount is sold with a Raw Aluminum / Orbital Finish. We treat the parts with a random orbital sander to create a uniform, matte industrial texture. However, this is a raw manufacturing component—it may bear machining marks. It is ready for you to paint, powder coat, or leave as-is for a rugged industrial look.

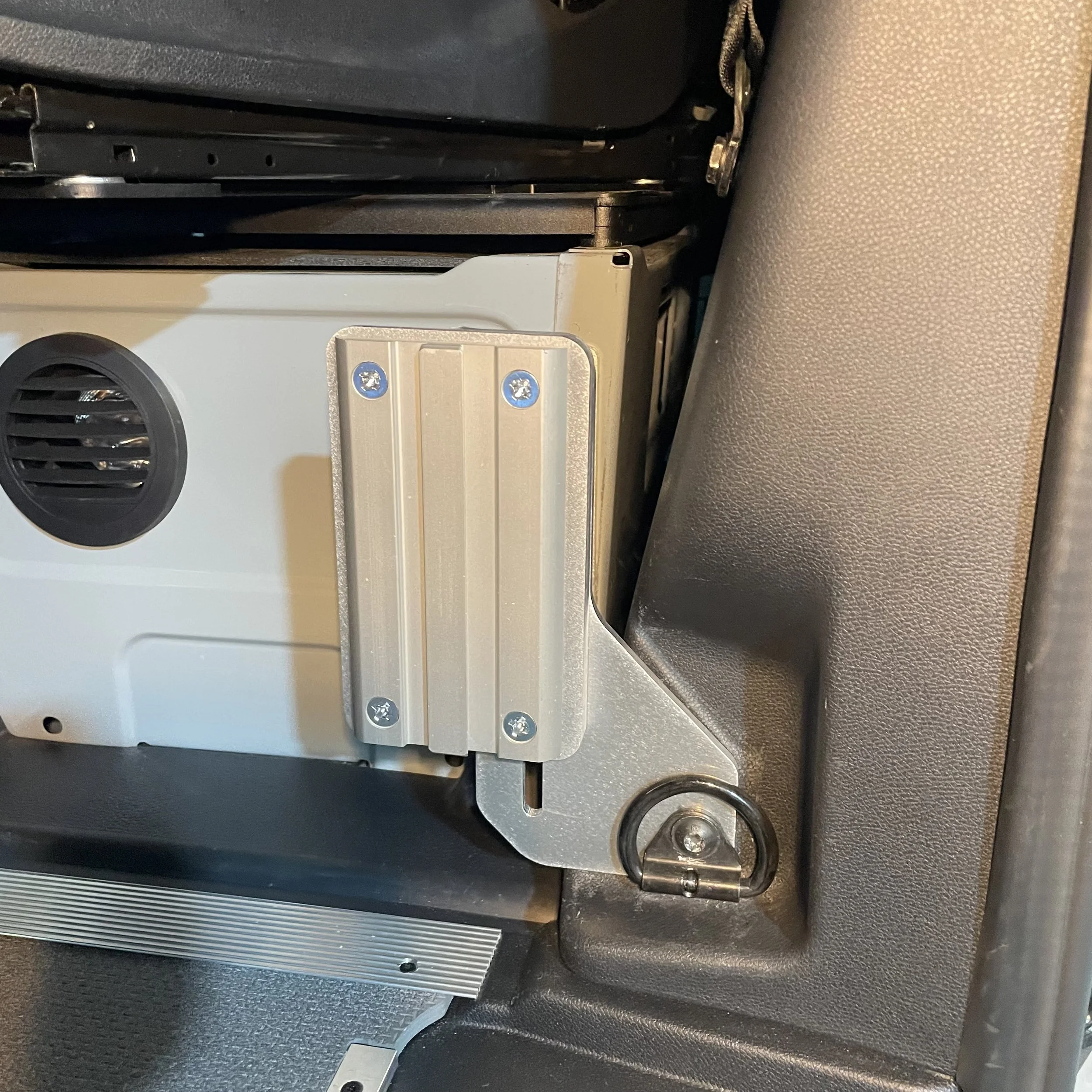

Uses the factory D-ring bolt on the B-pillar.
Uses the factory holes in the seat base.
No drilling required. All necessary mounting hardware is included
Reversible: Fits both Driver and Passenger sides.

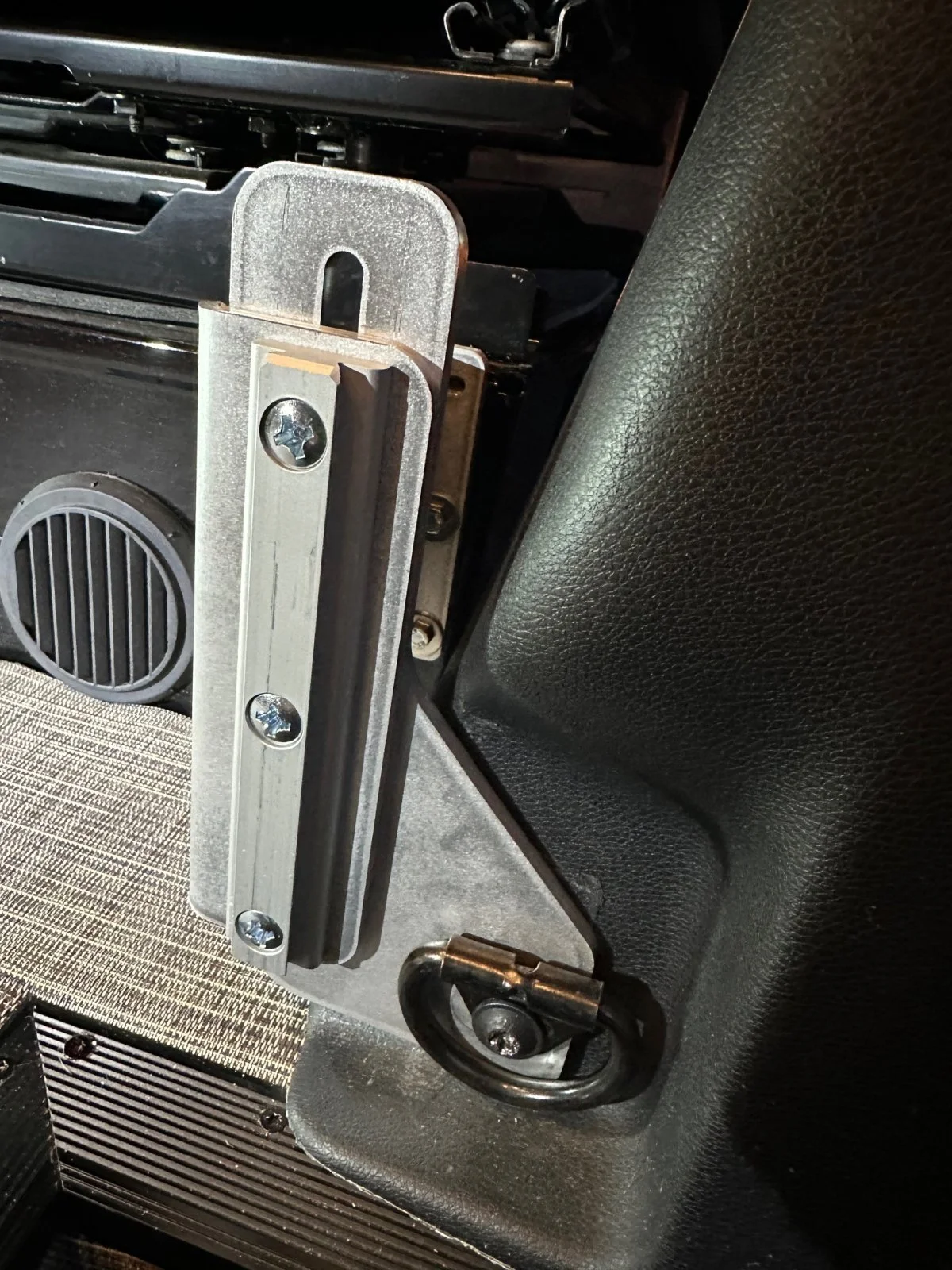

Seat Bases: Fits both Standard (High) and Factory Low (Option S87) Mercedes Sprinter seat bases.
Swivels: Compatible with OEM swivels and most aftermarket swivels (Scopema, Alpine Mechanisms, Mobiframe, etc.).
RV / Class B Van Owners: Compatible with factory-built adventure vans such as the Winnebago Revel, Storyteller Overland, Jayco Terrain, Thor Tranquility, and Coachmen Galleria.
Since this mount fits all Mercedes Sprinter seat bases, you only need to select the option that matches your Lagun Table hardware:
1. Standard/Wide Lagun Plate
Select this if: You are using the Standard Lagun Mounting Plate (approx. 3.5" wide).
Note: This is the default plate included with most new Lagun Table Systems.
2. Narrow/Sliver Lagun Plate
Select this if: You are using the Lagun "Sliver" Mounting Plate (approx. 1 3/16" wide).
Because RV builders often add custom trim, plastics, or upholstery over the seat bases, you must verify access before ordering:
B-Pillar: You must have access to the factory D-Ring bolt at the bottom of the pillar.
Seat Base: You must have clear access to the two factory holes on the rear, outboard side of the seat base (closest to the B-Pillar).
If your van has plastic trim covering these metal mounting points, the trim will need to be modified or removed to install this mount.
(1) 2-Piece Aluminum Mount Set
(1) Hardware Pack (Bolts, Nuts, Washers)
Note: The Lagun Table System itself is not included.
Made in USA by Stoutlander. Patent Pending.
